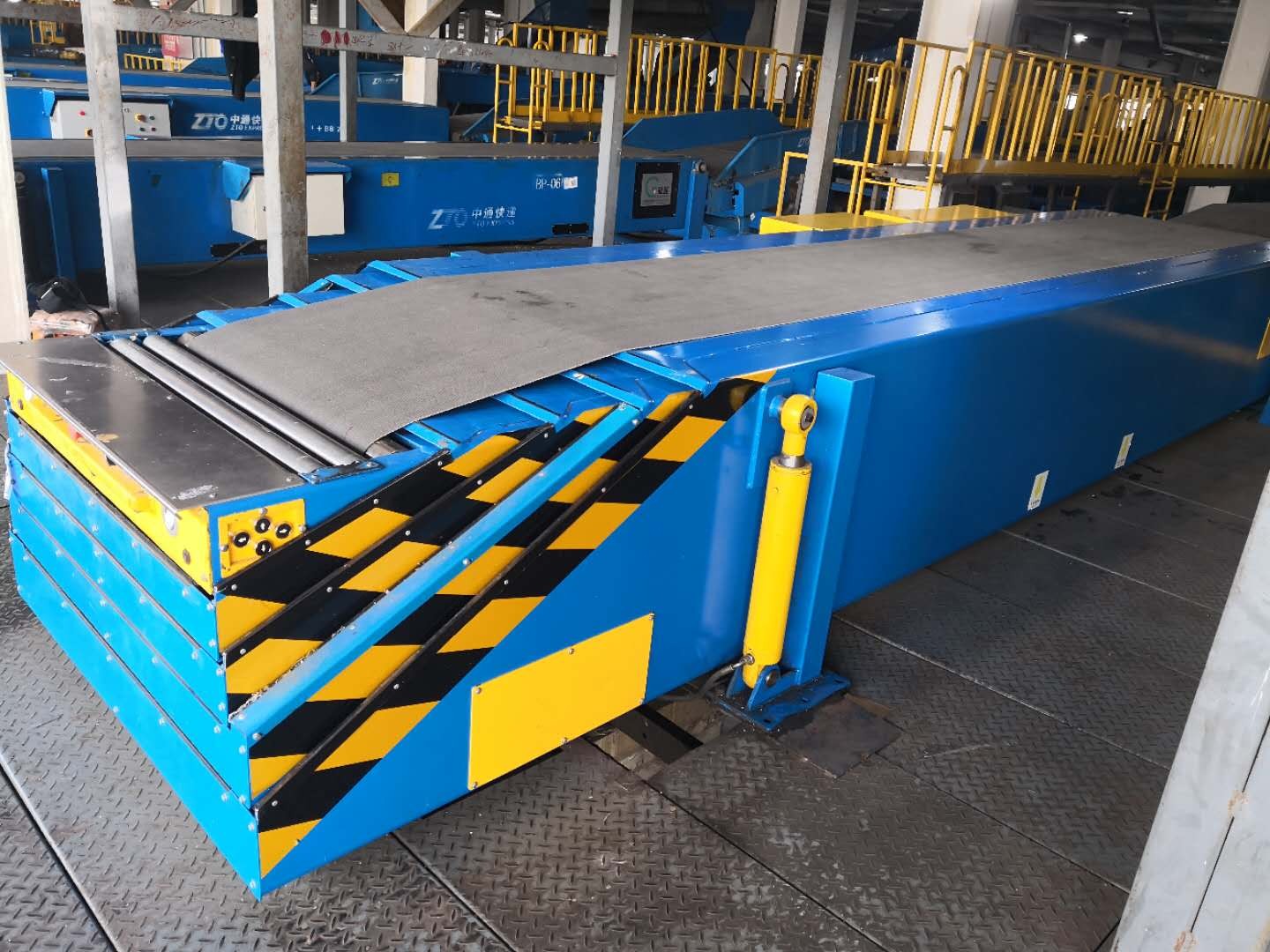

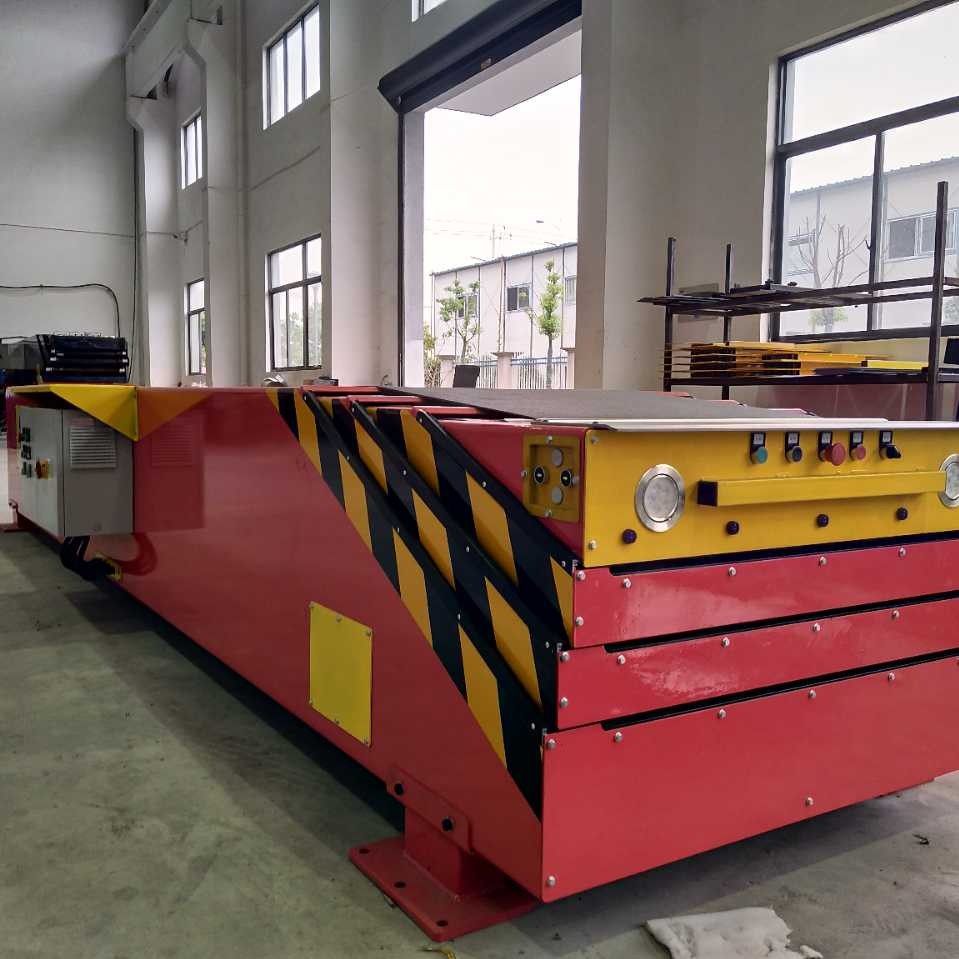

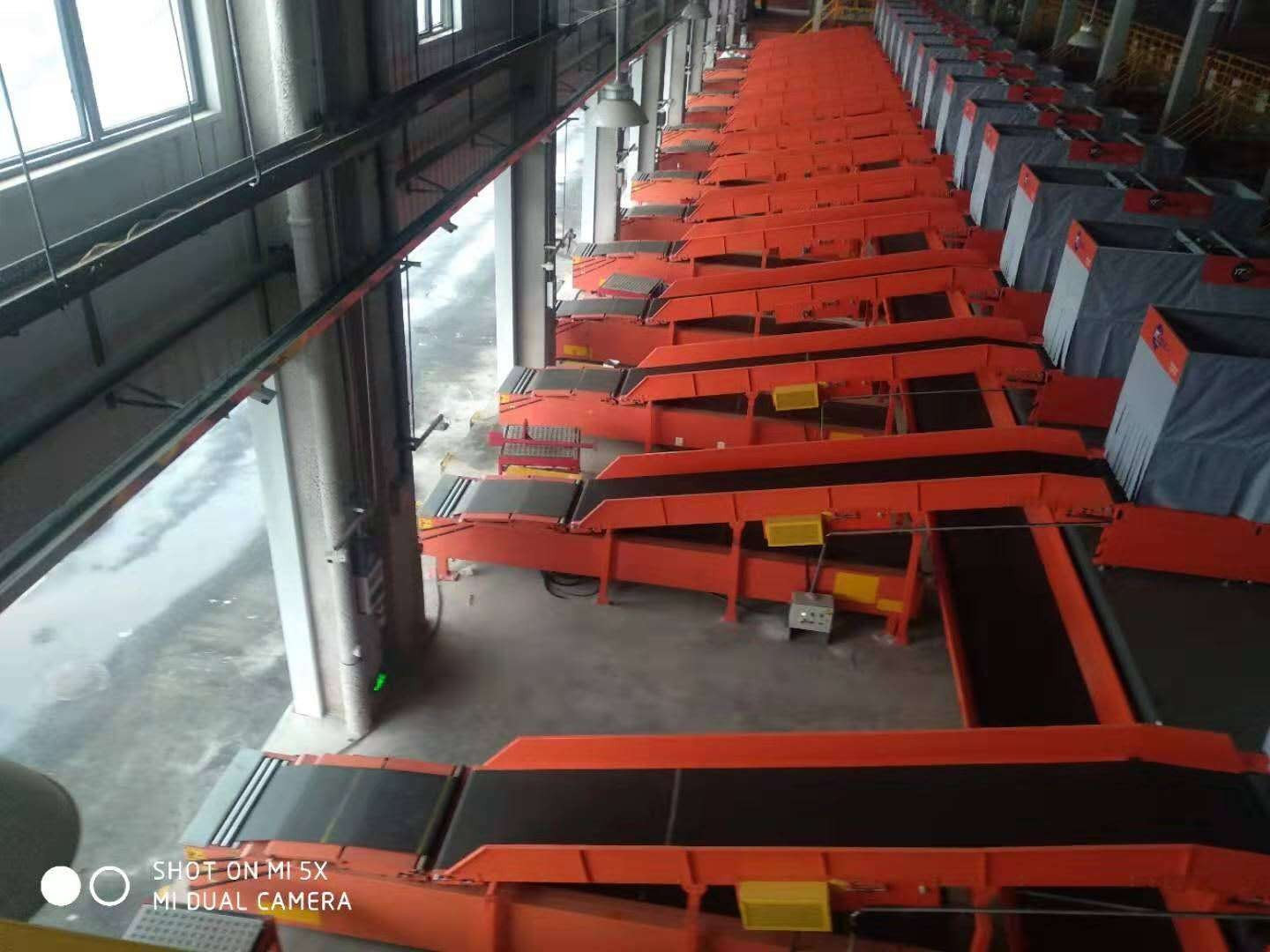

Telescopic belt conveyors, offer a safe and efficient loading and unloading solution. The main advantages are it’s simple operating system, and the ability to achieve a variety of positions by the operator extending and retracting the dock loader to its required position.
Using a fixed telescopic dock loader provides a simple, safe and cost-effective way of loading and unloading product.
|
Model |
Back Length (mm) |
Elongation (mm) |
Extended Length (mm) |
Height (mm) |
Belt Width (mm) |
Power (kw) |
Load Capacity (kg/m2) |
Conveying Speed (m/min) |
|
3 Sections |
6000 |
7500 |
13500 |
750 |
600/800 |
2.2/1.1/2.2 |
50 |
Max 12 |
|
3 Sections |
5400 |
6600 |
12000 |
800 |
600/800 |
2.2/1.1/2.2 |
50 |
Max 12 |
|
3 Sections |
7000 |
9600 |
16000 |
800 |
600/800 |
2.2/1.1/2.2 |
50 |
Max 12 |
|
Model |
Back Length (mm) |
Elongation (mm) |
Extended Length (mm) |
Height (mm) |
Belt Width (mm) |
Power (kw) |
Load Capacity (kg/m2) |
Conveying Speed (m/min) |
|
4 Sections |
5400 |
10000 |
15400 |
800 |
600/800 |
2.2/1.1/2.2 |
50 |
Max 12 |
|
4 Sections |
7000 |
1400 |
21000 |
800 |
600/800 |
3.2/1.5/2.2 |
50 |
Max 12 |
|
4 Sections |
7600 |
1600 |
23600 |
960 |
600/800 |
3.2/1.1/2.2 |
50 |
Max 12 |
|
Customizable according to customers’ requirements |
||||||||
