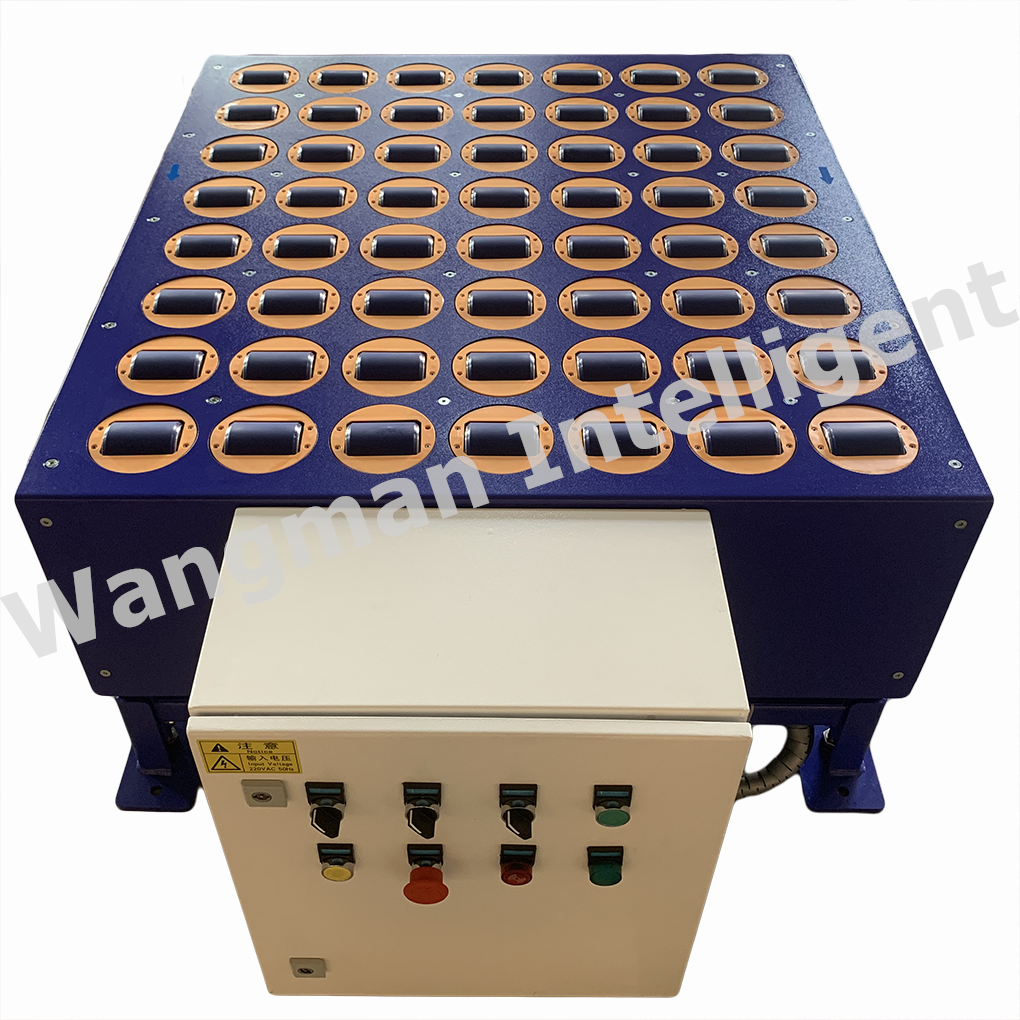

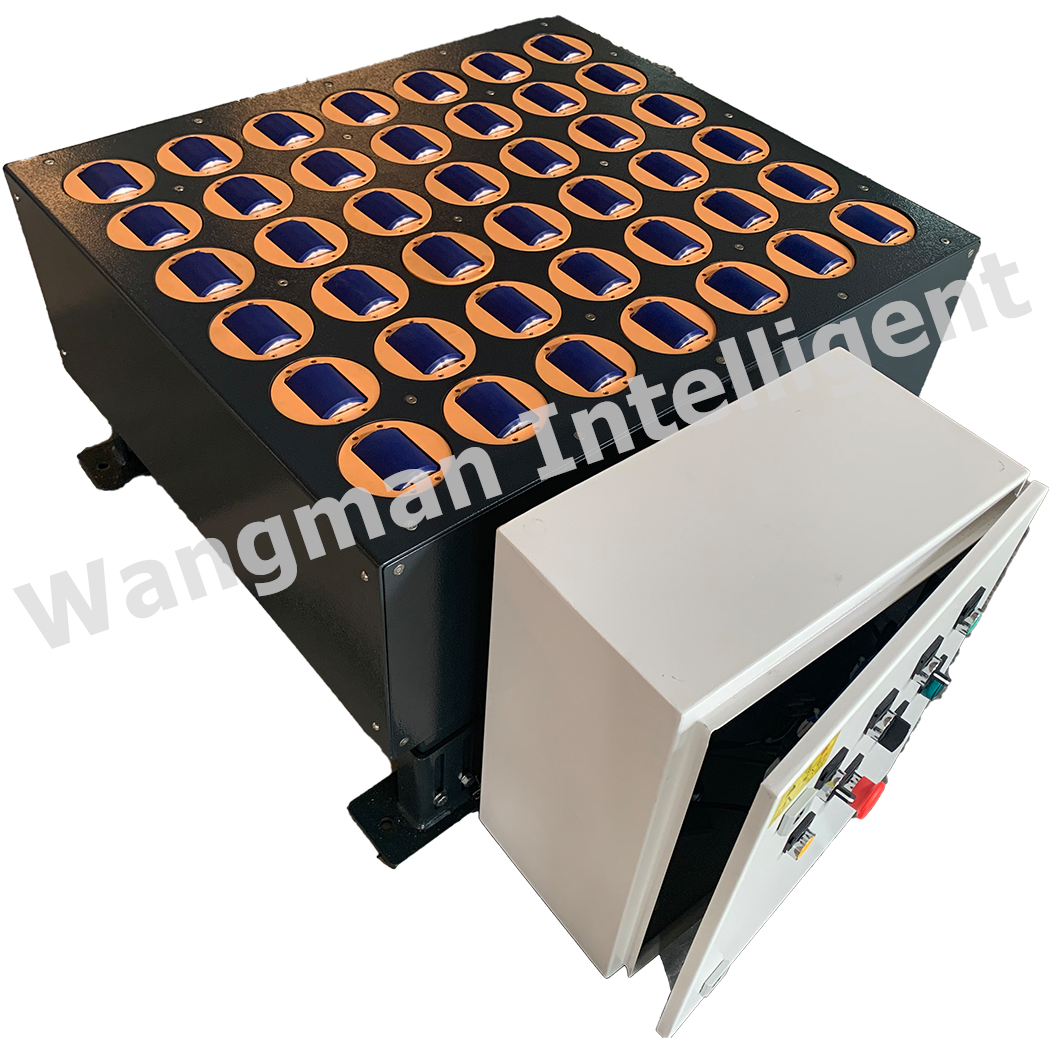

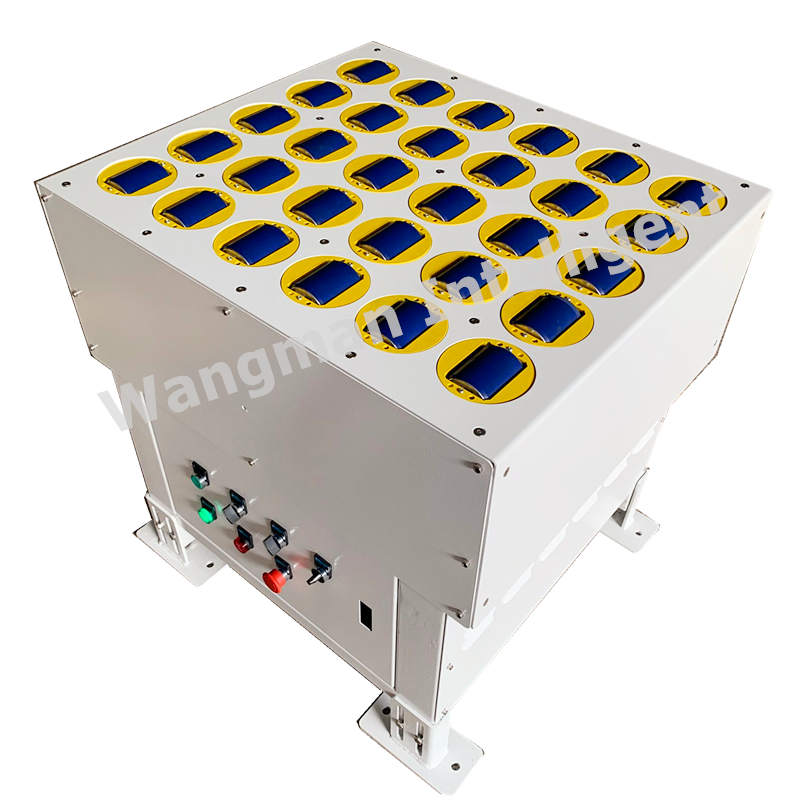

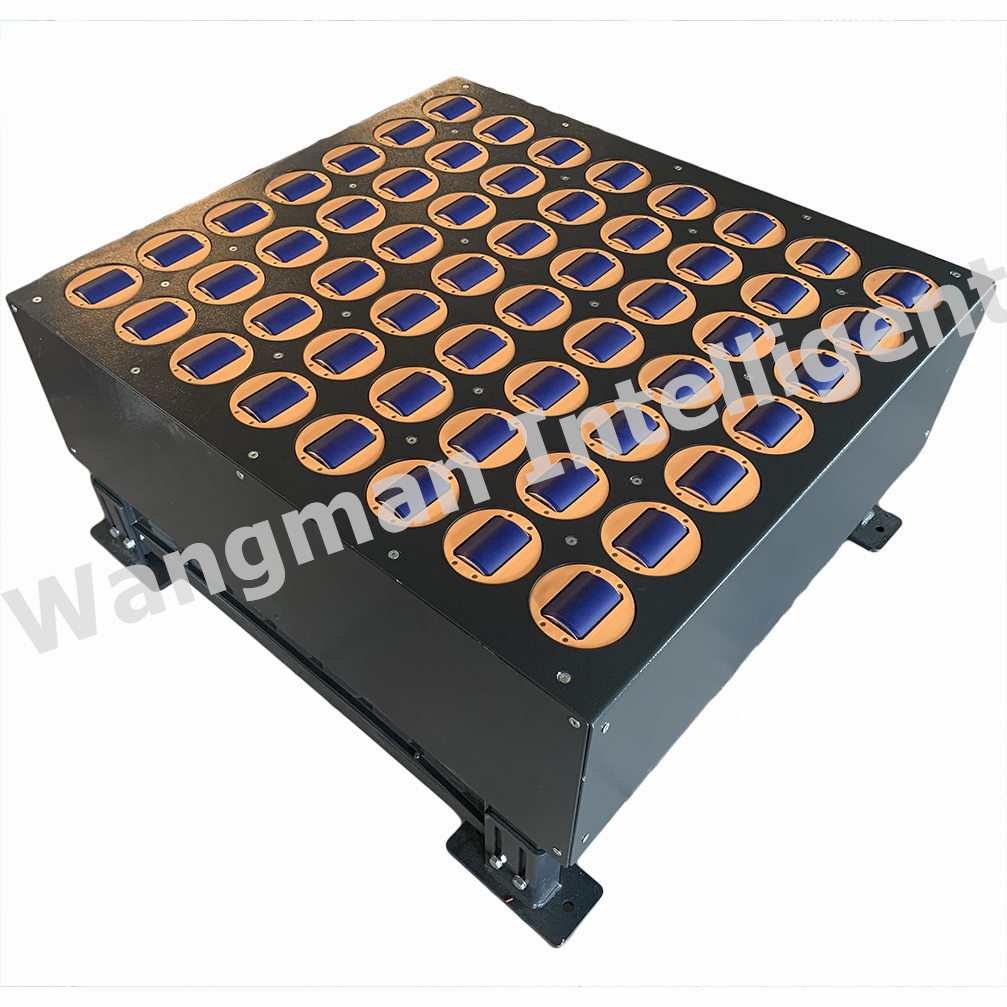

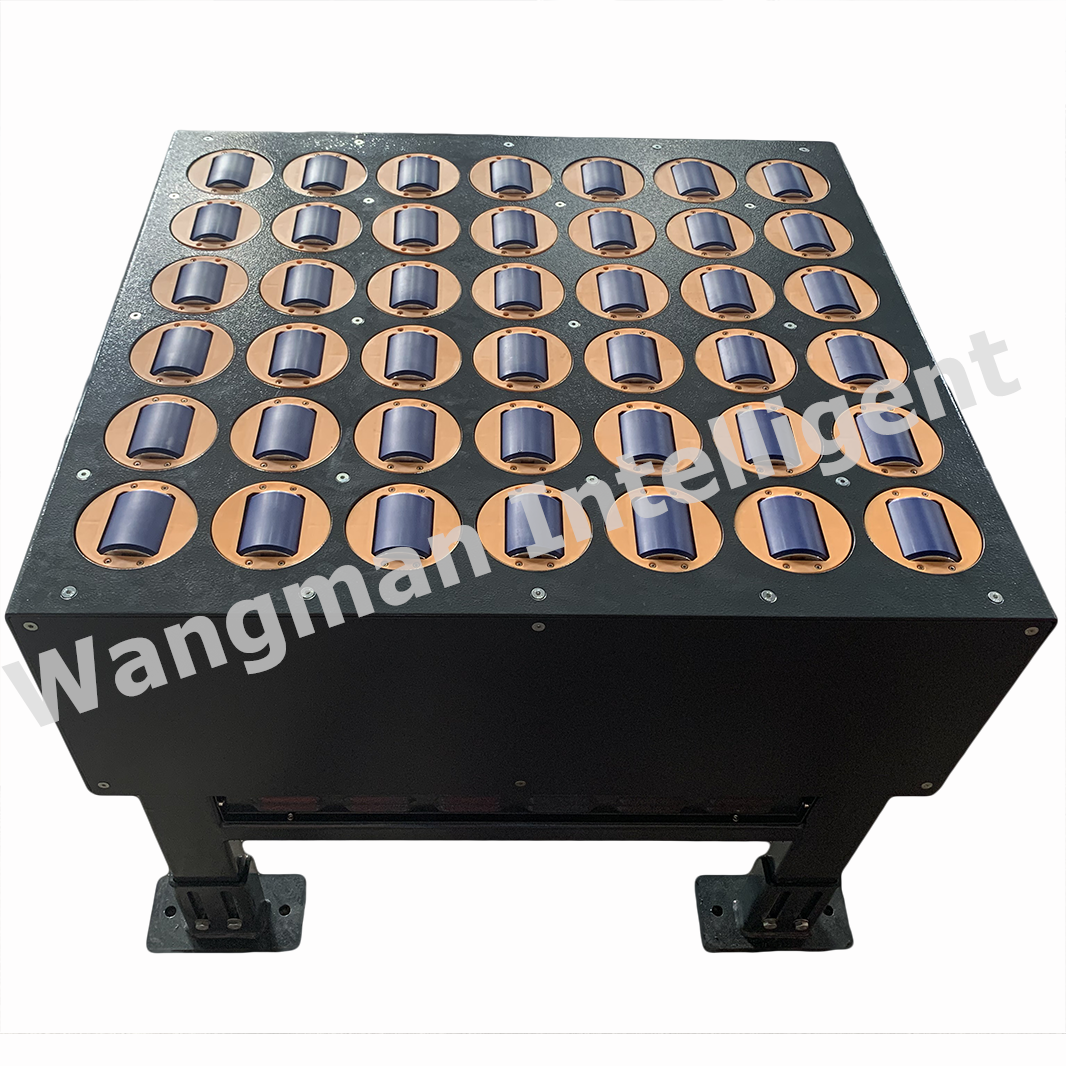

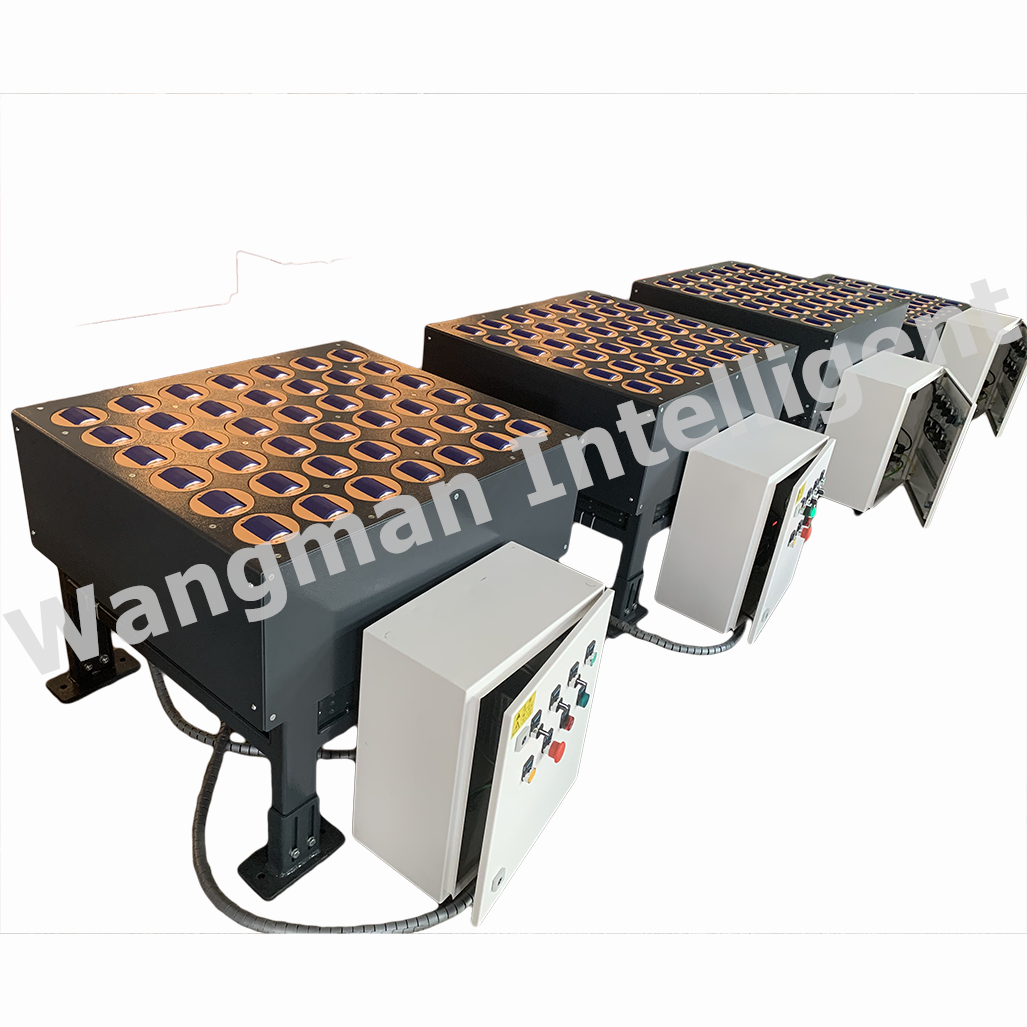

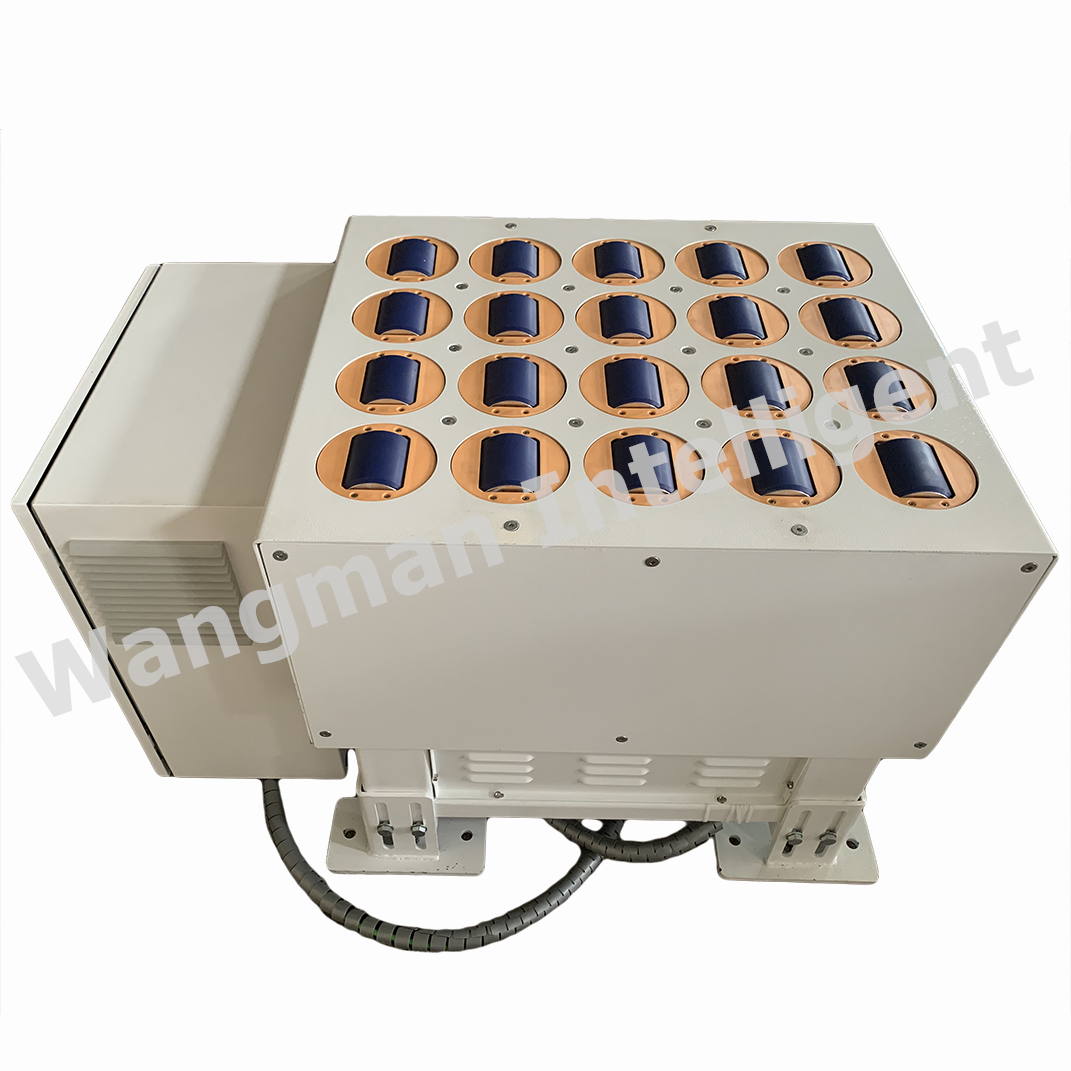

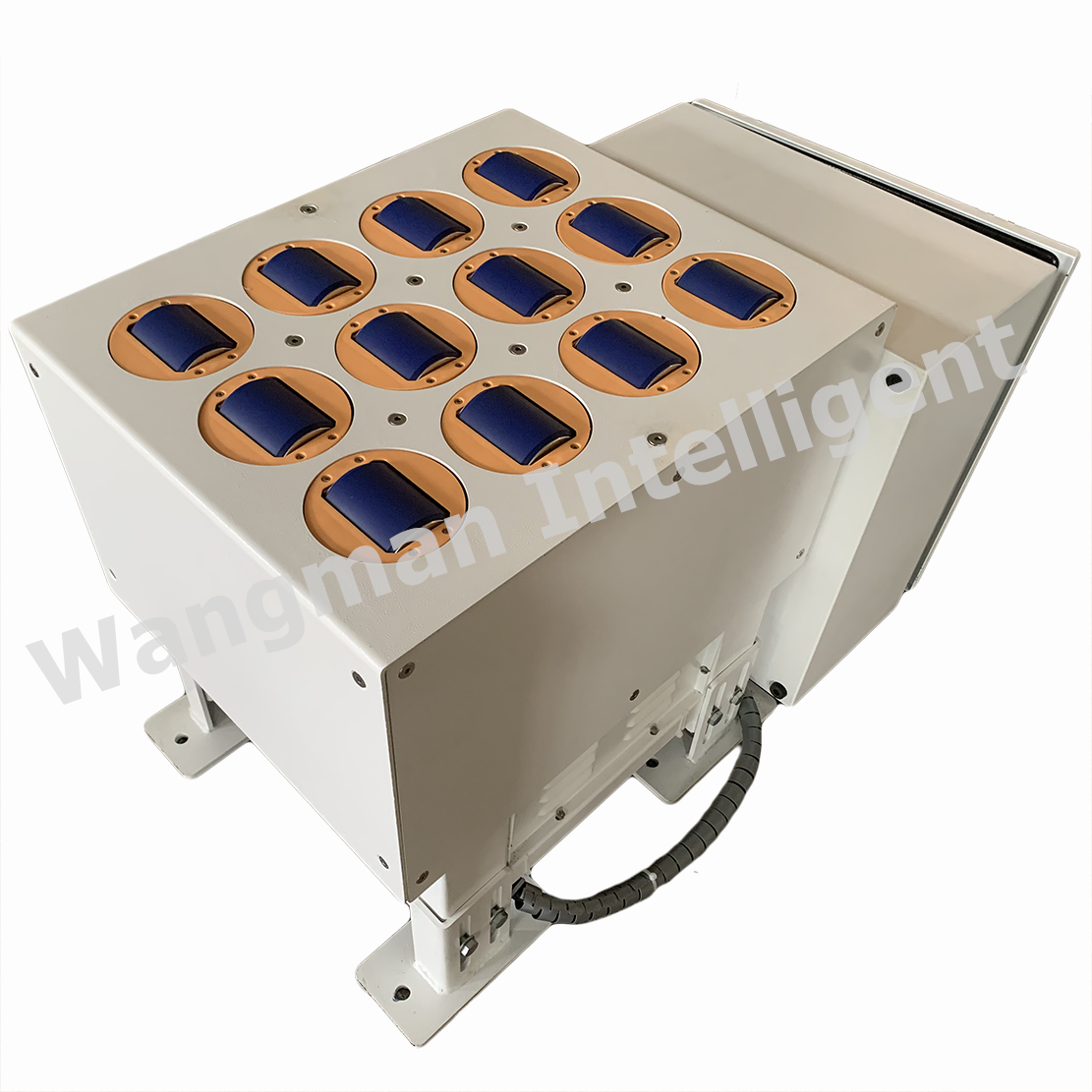

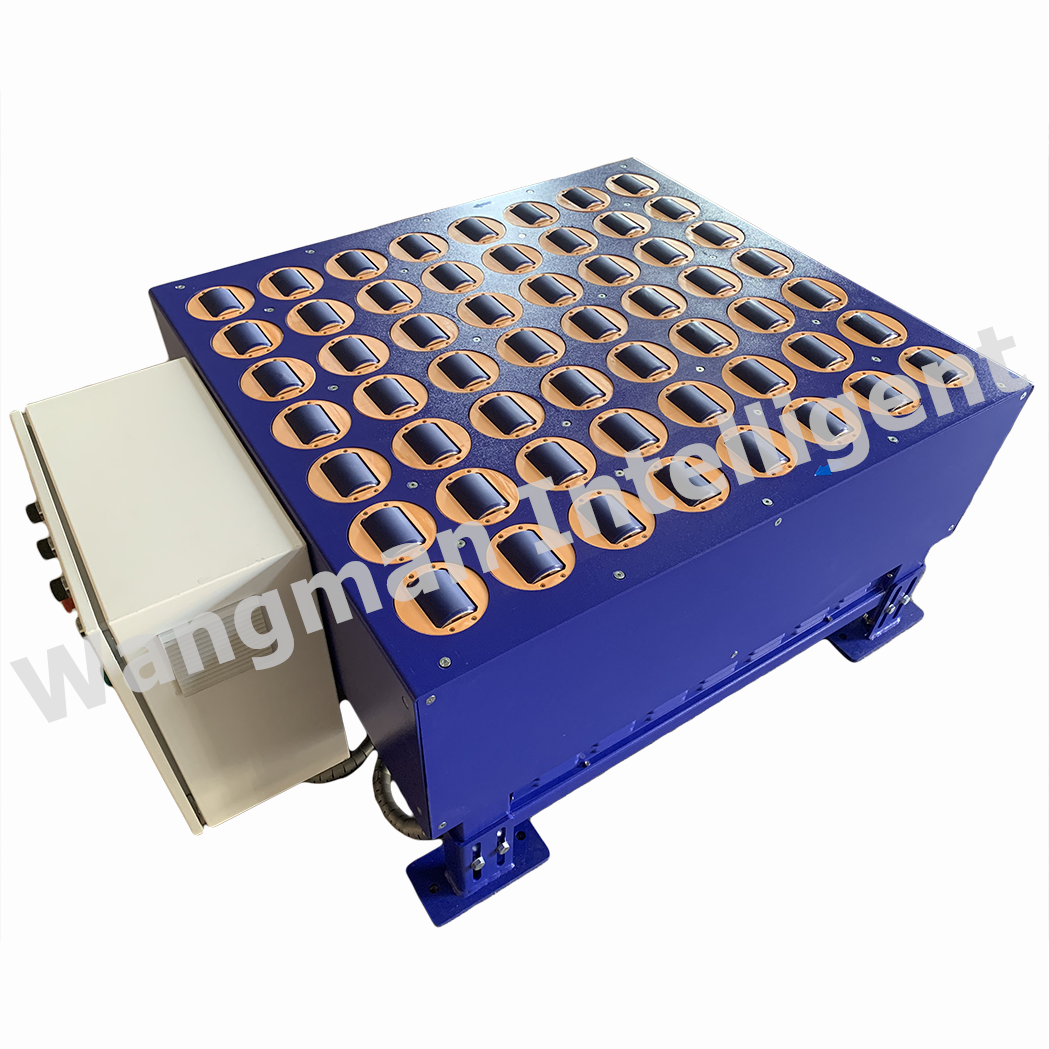

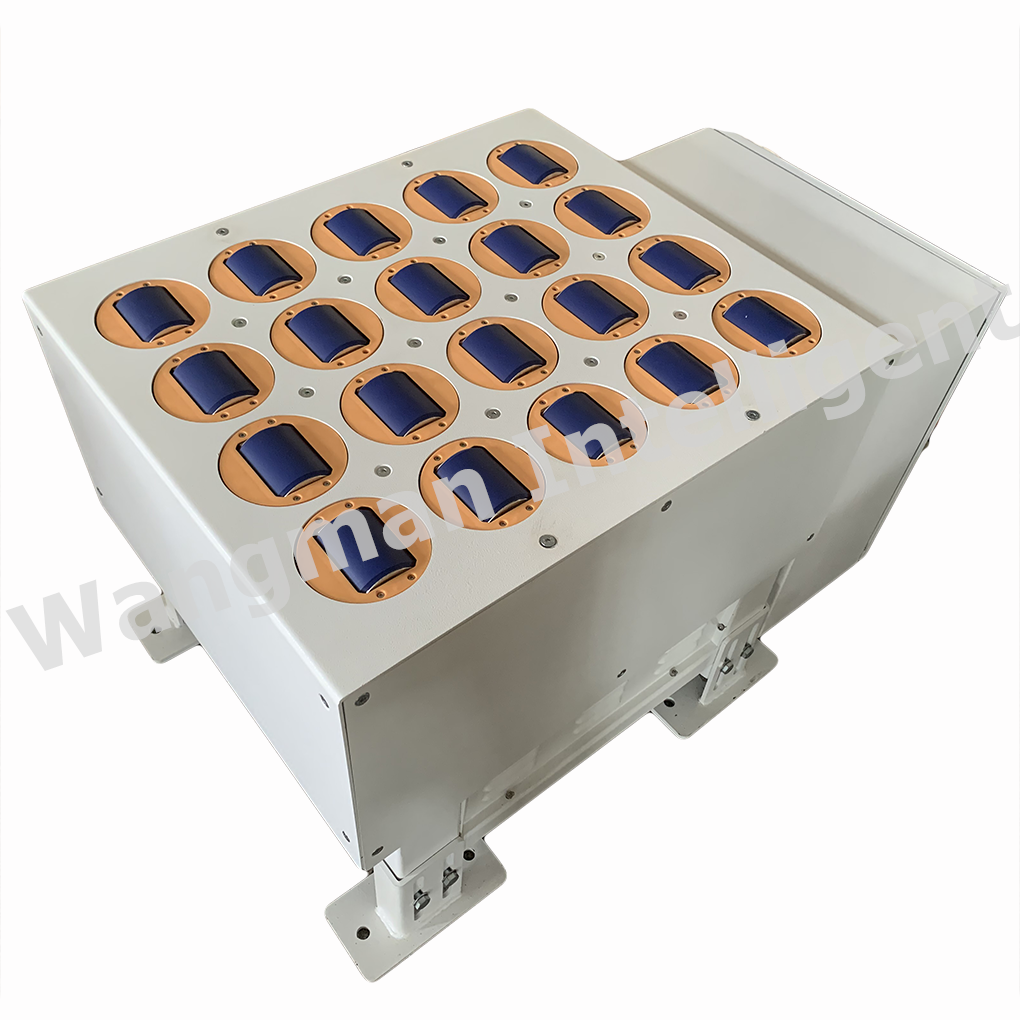

WM EWS Wheel Sorter

EWS uses a servo motor and uses a sensor to detect the movement of the balance wheel and interlocks with the sensor signal to ensure the stability and reliability of the sorting. The sorting steering mechanism is connected by joint bearings. Sorting angle can be fine-tuned to make on-site commissioning more flexible. The foot is adjustable which can according to the actual site situation.

Features

Capability:

Depends on Parcel Dimensions

Conveying Speed:

60~140m/min(Adjustable)

Diverting Angle:

30~90 Degree

Discharge Direction:

Right, Left and Forward

Operating Temperature:

-10~40 Degree

Electrical:

40W, 48V per Wheel

Interface Options:

RS485/232, Ethernet, IO

Max Loading Weight:

100kg/m2

Noise:

Less than 75dB
